The Evaporator Unit is a critical component in any refrigeration or HVAC system, responsible for absorbing heat from the surrounding air or fluid and facilitating efficient cooling. Designed for both commercial and industrial applications, our evaporator units are engineered for high performance, energy efficiency, and long-term reliability.

A Condensing Unit is the outdoor portion of a refrigeration or HVAC system. It houses essential components that allow the refrigeration cycle to function effectively. It's commonly used in:

Cold rooms & freezers

Commercial refrigeration systems

Air conditioning systems

Industrial cooling applications

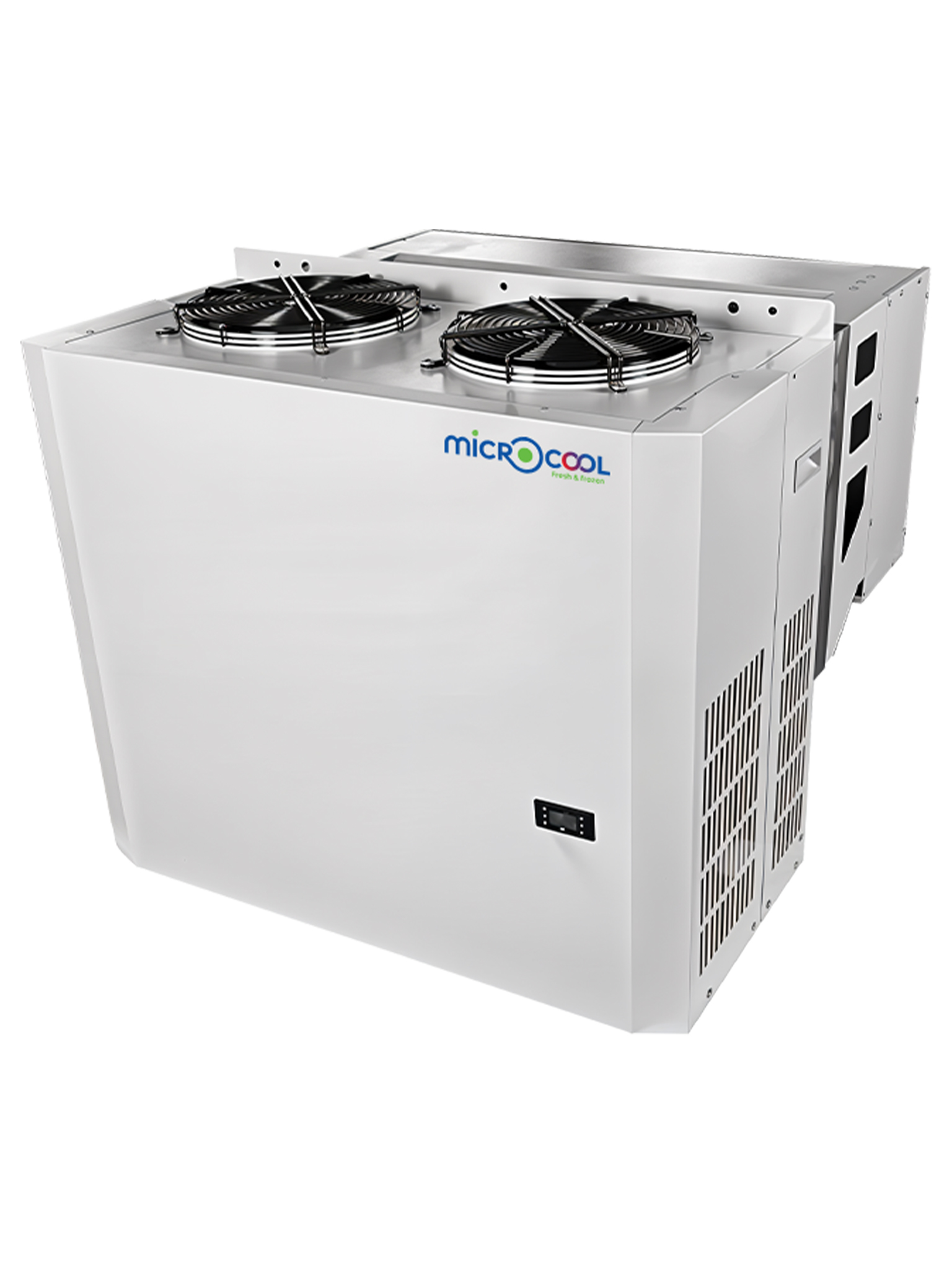

A Monoblock Unit integrates both condensing and evaporating systems into a single compact module, making it easy to install and maintain—ideal for plug-and-play refrigeration in commercial cold storage.

Technical Specifications
Parameter Details
Cooling Capacity 1.5 kW to 10 kW (custom range based on room volume & temperature)
Refrigerant R404A / R134a / R452A / R290 / R410A (eco-friendly options available)
Temperature Range -5°C to +10°C (Chiller) / -15°C to -25°C (Freezer)
Power Supply 230V/1Ph/50Hz or 400V/3Ph/50Hz
Compressor Type Hermetic / Scroll / Rotary / Reciprocating (depending on capacity)
Evaporator Coil Copper tubes with aluminum fins, anti-corrosion coating optional
Condenser Coil Air-cooled, axial fan mounted
Fan Motor Axial fans, EC/AC type, low noise, IP44 or better
Controller Digital temperature controller with LED display and defrost settings
Defrost Electric / Hot gas (automatic/manual options)
Drainage Integrated drip tray with drain outlet
Cabinet Material Powder-coated galvanized steel / Stainless steel
Insulation PU foam or integrated thermal break material
Mounting Plug-in wall or ceiling-mounted via brackets
Protection HP/LP switch, overload protector, thermostat cutoff
Certifications CE / RoHS / ISO9001 (optional depending on manufacturer)

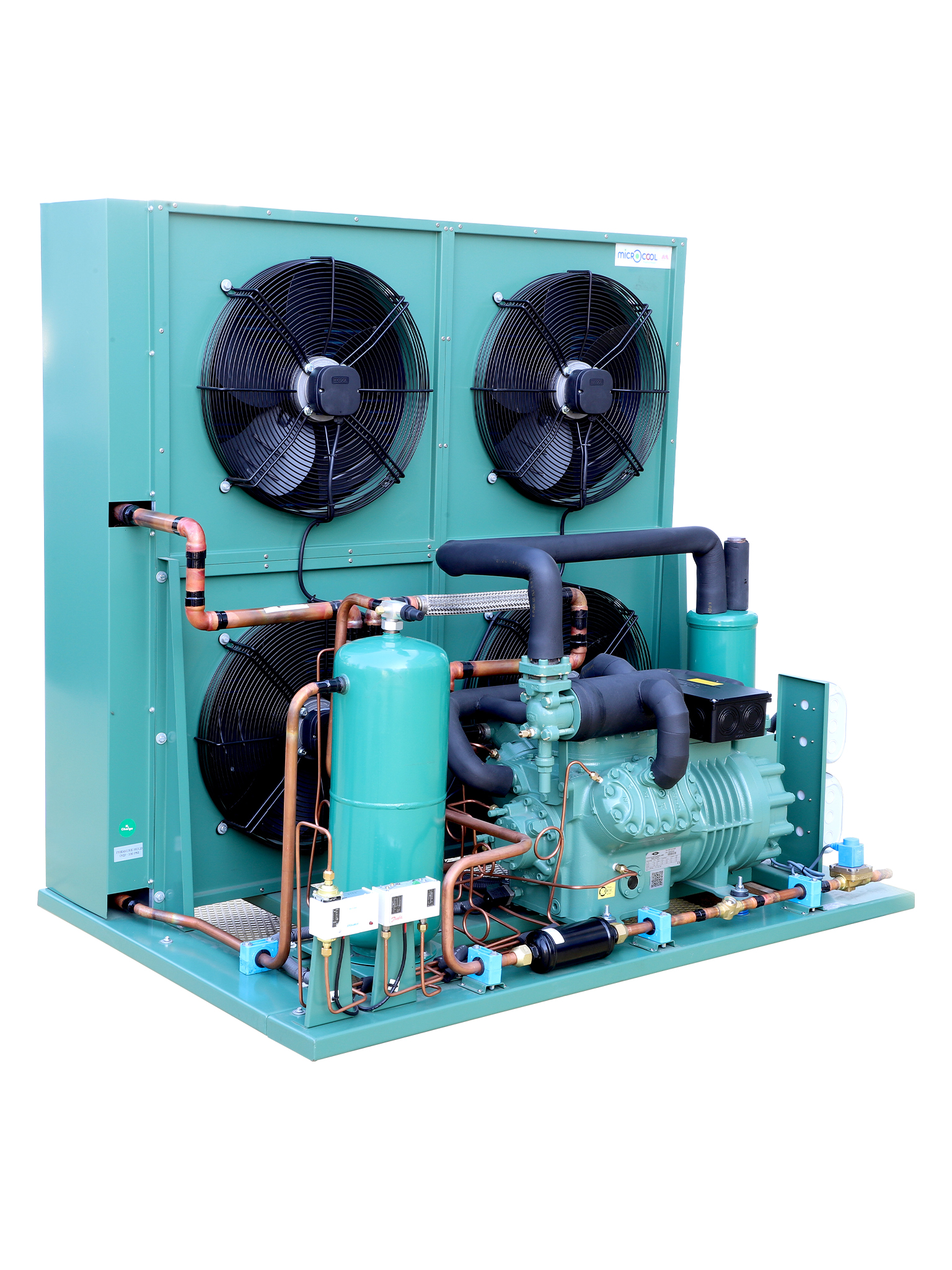

The Semi-Hermetic Condensing Unit is engineered to deliver high performance and durability for medium and low-temperature refrigeration applications. Equipped with a robust semi-hermetic compressor, these units offer easy serviceability, enhanced cooling efficiency, and long-term operational reliability. Ideal for cold rooms, walk-in freezers, dairy and food processing, and pharmaceutical applications.

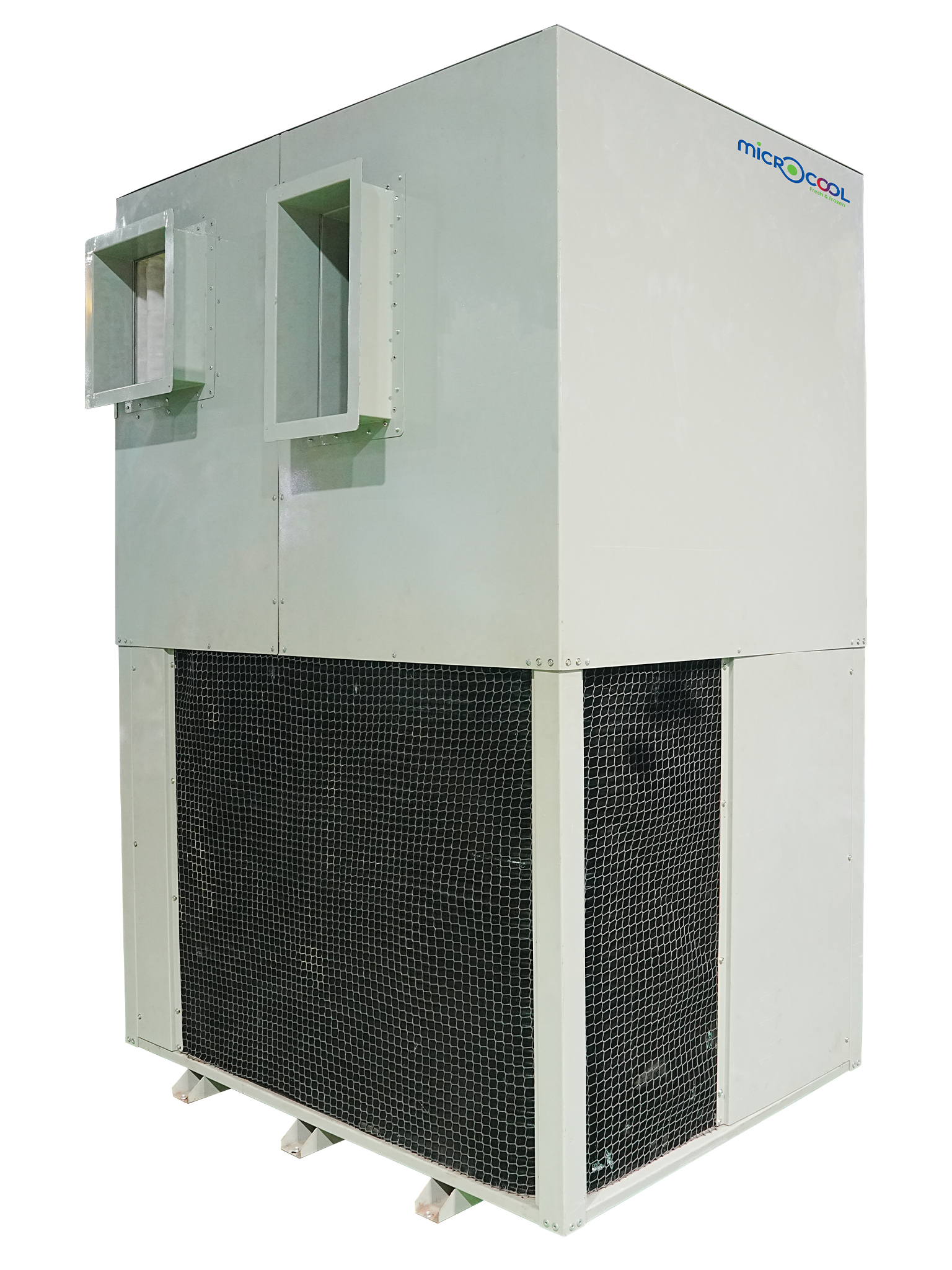

The Flameproof Condensing Unit is specially designed to operate safely in hazardous areas where flammable gases or vapors may be present.

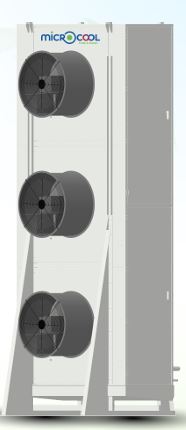

A Blast Freezer, also known as a Shock Freezer, is a high-performance refrigeration system designed to rapidly reduce the temperature of food or perishable products to freezing levels in a short period—usually within 90 to 240 minutes. This process preserves product quality, prevents bacterial growth, and extends shelf life without compromising texture, flavor, or nutritional value.Key Features:
Rapid Freezing Cycle: Cools products from +70°C to -18°C core temperature in under 4 hours.

High Air Velocity: Specially designed evaporator units with high-speed fans ensure even and accelerated cooling.

Heavy-Duty Construction: Built to withstand extreme cold, moisture, and corrosion; internal structure often in SS304.

Precise Temperature Control: Digital microprocessor-based controllers for consistent temperature and time control.
Typical Technical Specifications:
Parameter Specification
Freezing Capacity 250 kg to 2000+ kg per cycle (customizable)
Temperature Range +70°C to -40°C
Pull Down Time 90 to 240 minutes (based on load & model)
Refrigerant Options R404A, R507, R448A, R717 (Ammonia), CO?
Compressor Type Semi-hermetic / Screw / Scroll
Insulation 120–150 mm PUF Panels, CFC-free
Internal Finish Food-grade SS304 (walls, floor, shelving)
Airflow 3 – 5 m/s (high-speed, multi-directional)
Defrost Mechanism Electric / Hot gas / Off-cycle
