KPT Drainmate SWR Drainage System. These products are manufactured for using high quality UPVC .

KPT Everflow Agri Piping System are specifically use for agriculture applications.

KPT Greentherm PPR-C Pipes and Fittings use for hot and cold water application.

KPT Pnuemato Sandwiched Glass Fiber Piping System . These Pnuematic Pipes designed for Air and Gas compression systems .

KPT Thermaplus (Themal FR Composite Piping) designed for firefighting lines.

• Housing : Light deep drawn body in one piece. Ball & stem are made from stainless steel. Electronic control box made from ABS in an DIN size 96X96 housing.
• Temperature range : -50°/+55°C
• Pressure range : Max. operating pressure 20 bar g (290psig).
• This device consists of two separate units, the float chamber and a electronic controller. The float chamber consists of housing, float ball, float coil and enclosure.
• While primarily designed for Ammonia, this control is also suitable for R-22 and other non-corrosive liquids that have a specific gravity of 0.5 or more.

• Housing : Valves are made of steel with a ball for protection incase of failure. The glass is fused to the metal at high temperatures.
• Temperature range : -40°/ + 125°C
• Pressure range : Max. working pressure of 40 bar g (580 psig).
• Size Ranges from 300 mm to 1200 mm
• Applicable these level indicators are used to display the level of ammonia gas in the system.

A Monoblock Unit integrates both condensing and evaporating systems into a single compact module, making it easy to install and maintain—ideal for plug-and-play refrigeration in commercial cold storage.

Technical Specifications
Parameter Details
Cooling Capacity 1.5 kW to 10 kW (custom range based on room volume & temperature)
Refrigerant R404A / R134a / R452A / R290 / R410A (eco-friendly options available)
Temperature Range -5°C to +10°C (Chiller) / -15°C to -25°C (Freezer)
Power Supply 230V/1Ph/50Hz or 400V/3Ph/50Hz
Compressor Type Hermetic / Scroll / Rotary / Reciprocating (depending on capacity)
Evaporator Coil Copper tubes with aluminum fins, anti-corrosion coating optional
Condenser Coil Air-cooled, axial fan mounted
Fan Motor Axial fans, EC/AC type, low noise, IP44 or better
Controller Digital temperature controller with LED display and defrost settings
Defrost Electric / Hot gas (automatic/manual options)
Drainage Integrated drip tray with drain outlet
Cabinet Material Powder-coated galvanized steel / Stainless steel
Insulation PU foam or integrated thermal break material
Mounting Plug-in wall or ceiling-mounted via brackets
Protection HP/LP switch, overload protector, thermostat cutoff
Certifications CE / RoHS / ISO9001 (optional depending on manufacturer)

Mycom offering to Indian market L and K Series compressors which we are make in INDIA.

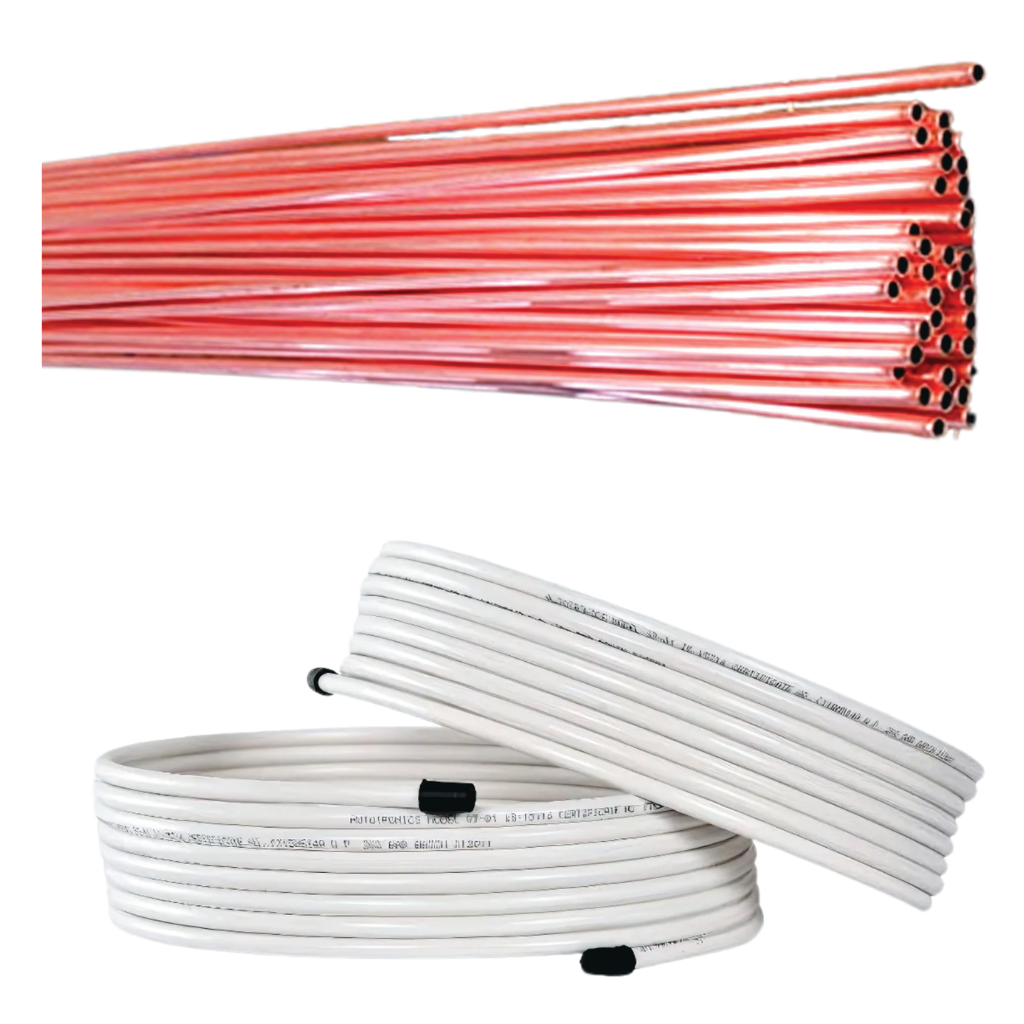

Copper or Zinc coated steel tubes covered in a plastic sleeve for usage in refrigerators.

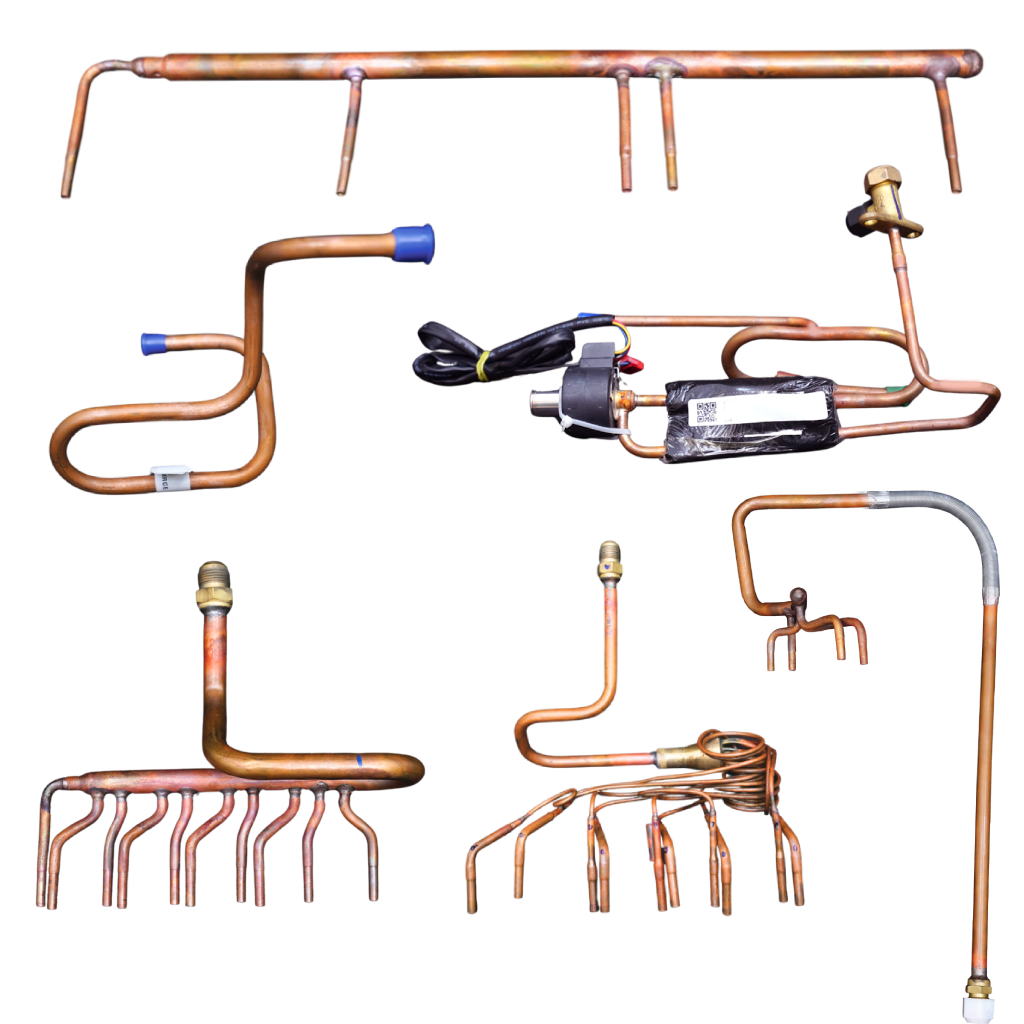

Durable and reliable assembly for connecting pipes in refrigeration. It ensures leak-proof and secure connections.

The Semi-Hermetic Condensing Unit is engineered to deliver high performance and durability for medium and low-temperature refrigeration applications. Equipped with a robust semi-hermetic compressor, these units offer easy serviceability, enhanced cooling efficiency, and long-term operational reliability. Ideal for cold rooms, walk-in freezers, dairy and food processing, and pharmaceutical applications.

• Housing - Made of special cold resistant steel
• Pressure - CSVA-2 DN - 15 to DN - 40: 25 bar (362 psig)
CSVA-4 DN - 15 to DN -250: 40 bar (580 psig)
• Temperature range: - 46°/ + 150°C
• Back seating : Internal soft back seating DN - 15 -250 (½ - 10 in.).
